Electric Winch Mounting Plate Roller Guide 12V 1360KG

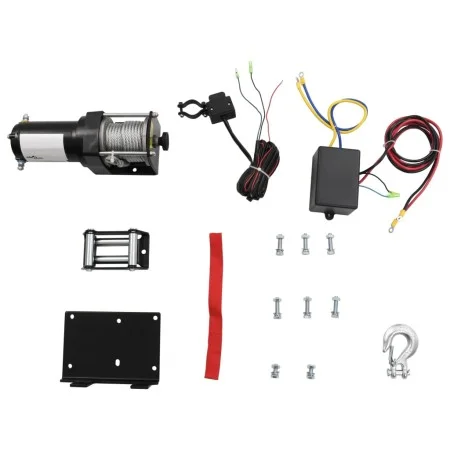

This electric winch is specially designed for vehicle recovery. The included free-spool clutch is operated by a pull-turn knob that disengages the gearbox to allow the cable to be removed without using electrical power. A tension plate reduces slack and entrapment when removing the cable. It also features a mounting plate and roller guide. Equipped with a permanent motor, this device is suitable for intermittent duty use. Delivery includes: 1 winch, 1 mounting plate, 1 roller guide, 1 hook with cable, power cable and mounting accessories such as screws and nuts.

• Max. cable pull: 1360 KG
• Max. current: 145 amps
• Motor: 1.2 HP, permanent magnet DC 12 V
• Gear ratio: 153:1
• Gear: Differential planetary
• Steel cable length: 9m
• Winch weight: 5.5kg
• Net weight (accessories included): 9 kg
• Dimensions: 285 x 105 x 105 mm (length x width x height)
• Drum diameter: 31.75mm
• With mounting plate and guide roller
