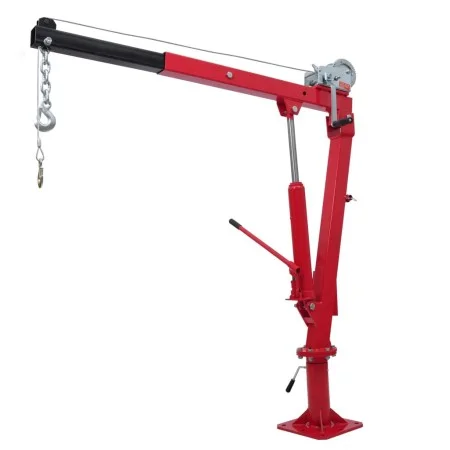

Crane truck with cable and winch

This cable winch crane can be easily mounted to your truck, making loading and unloading easy. Thanks to the winch, you can lift loads directly from the ground. The winch is operated manually. When fully loaded, the turret's ball bearings provide smooth adjustment. There is a separate holder for the included rod. Also included is a large chain with hooks. The head with bearings and locking screw can rotate 360°. With this collection crane you can safely transport goods and objects in the back of the truck.

• Maximum height from floor to bottom of hook: 160cm
• Total height from the ground: 215 cm
• Wind cable length: 9.5 m / rope dimensions: 5 mm
• Base mounting plate: 27 x 27 cm with 8 mounting holes
• Maximum opening of large hooks: 20 mm
• Maximum opening of small hooks: 23mm
• Loading arm length: min. 100cm/max. 140 cm 2-stage adjustable load arm: 450/900 kg
• Dimensions: 75 - 140 x 27 x 155 - 215 cm (length x width x height)
