MIG/MMA/TIG welding machine 200 A

This welding machine is an excellent choice for DIY enthusiasts and professional welders for any maintenance and repair work. Multi-purpose welder: This welder features multi-mode MMA, MIG and TIG, which will meet most work requirements. Easy to use: The welder has a digital panel that displays functional parameters, ensuring convenient and conciso.Amplios operation. Wide uses : The welding machine is suitable for welding steel, stainless steel and aluminum. It is designed for different purposes such as welding doors and windows, fences, garages, pipes and other repair work.

• Color: Gray and black
• Material: Steel, plastic
• Dimensions: 42.5 x 21 x 29 cm (L x W x H)
• Input voltage: 230 V
• Frequency: 50Hz
• Housing protection grade: IP21S
• Wire diameter: 0.8/0.9/1mm
• Wire feeding speed: 2-12.5 / 2-8.1 m/min
• Power Source: Plug
• Power cord length: 2m
• Power supply efficiency: 81%
• Power consumption in idle state: 10W
• Suitable for welding steel, stainless steel and aluminum.
• Suitable for welding solid wire (with gas) and flux wire (without gas)
• Weight: 12kg
• Output current (power supply):
• MIG/MAG: 50~160 A
• MMA: 30~140 A
• TIG: 30~200A
• Output voltage:
• MIG/MAG: 16.5~21.0/22.0V
• MMA: 21.2~24.8/25.6V
• TIG: 11.2~17.0/18.0V
• Work cycle:
• MIG/MAG:
• 160 A 22 V - 20%
• 92 A 18.6 V - 60%
• 72 A 17.6 V - 100%
• MMA:
• 140 A 25.6 V - 20%
• 81 A 23.2 V - 60%
• 63 A 22.5 V - 100%
• TIG:
• 200 A 18 V - 10%
• 82 A 13.3 V - 60%
• 63A 12.5V 100%

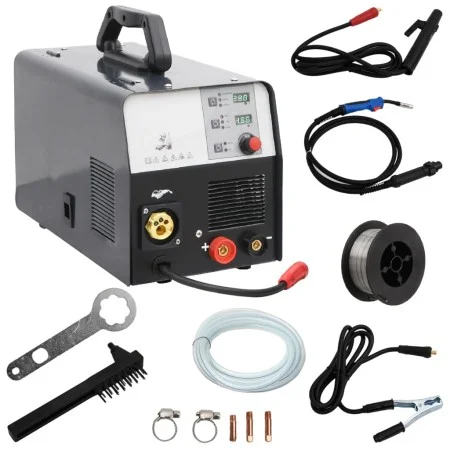

• Delivery includes:
• 1 x Welding machine
• 1 x Wire Brush
• 4 x Nozzles (0.6/0.8/0.9/1mm)
• 1 x Flux Wire (0.9mm 0.45kg)
• 1 x MIG torch with cable (3 m with connector)
• 1 x Ground clamp with cable (2m)
• 1 x Electrode holder with cable (2 m)
