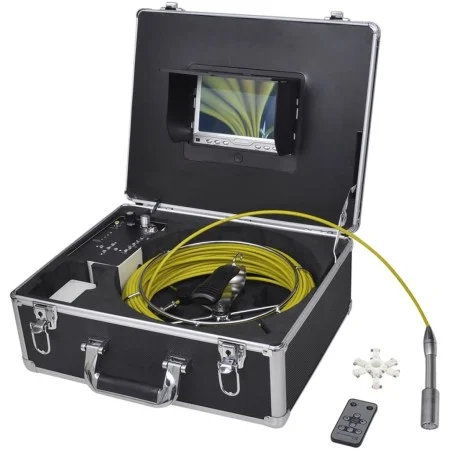

Pipe inspection camera 30 m with DVR control box

This is a professional video camera system with a waterproof camera, connected with a fiberglass cable, used for the inspection of sewer pipes, as well as for the inspection of other hard-to-reach areas. By connecting the camera to the cable reel, you can reach the desired depth or distance by removing the cable. The attached dolly will protect the camera from serious damage and move the camera smoothly. The image will be displayed on the color monitor with menu button/remote control to adjust the image and view. The camera also has built-in LEDs that make inspection possible in complete darkness. You can also record video or sound with the DVR control box and transfer the image/video to your PC. The bright color monitor also has a sun visor to ensure better viewing with less glare. This unit can be easily transported in the included carrying case.

• Monitor specifications:
• Screen size: 7" color monitor
• Total monitor pixels: 800 x 480 (H x V)
• Monitor power: DC 12V
• Model: 16:9
• With built-in sunshade
• Operating temperature: -20°C~+60°C
• Battery charger: Input: AC 110-240 V, Output: DC 12 V
• Rechargeable battery: Lithium-ion battery, 12V
• Battery capacity: 4500 mAh
• Battery operating time: Approx. 7am
• Camera specifications:
• Camera size: 23mm x 120mm (width x length)
• The camera can enter pipes with a diameter greater than 24/37/90 mm
• Camera case material: 304 stainless steel
• Camera glass material: Sapphire glass
• Sensor size: 1/3" CMOS
• Total pixels: HD 960 TVL
• Lens focus: 3.6mm
• Viewing angle: 75°
• Camera LED lights: 12 white LEDs
• With gold plated connector
• Camera working current: 100 MA
• Camera Power: DC 12V
• Ingress Protection Rating: IP68 (Waterproof)
• Operating temperature: -10°C~+50°C
• DVR Control Box Specifications:
• DVR Power: 12V
• DVR working current: 200MA
• Storage medium: SD Card (Max. 16G)
• DVR Total Pixels: 720 x 576 (H x V)
• Movie format: AV
• With still image and movie capture
• Cable wheel specifications:
• Cable size: 300mm x 110mm (diameter x height)
• Cable material: Fiberglass
• Cable length: 30 m
• Wire diameter: 4.8mm
• Wire color: Yellow
• Aluminum casing:
• Dimensions: 397 x 311 x 171 mm (length x width x height)
• Delivery includes:
• 1 x Camera
• 1 x 7" LCD monitor
• 1 x Connection Cable
• 1 x Cable reel
• 1 x Remote Control
• 1 x Rechargeable Battery
• 1 x Battery Charger
• 1 x DVR control box
• 1 x Aluminum Case
• 2 x Keys
• 1 x roller skate
