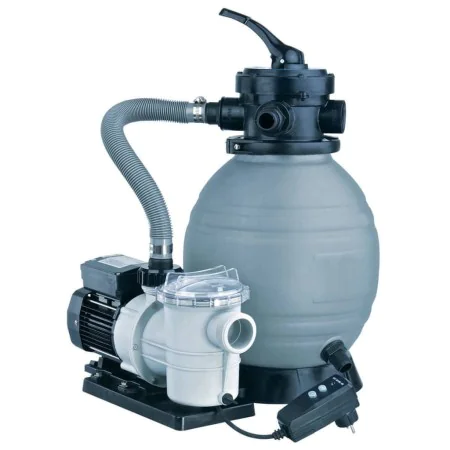

Filtration pump set for Ubbink pool 300 TP 25 7504641

This filtration pump is used to filter various types of pools. This pumping and filtration system is designed as a low-maintenance cost option to keep your pool water clean. The principle of sand filtration is as follows: The pool water is sucked out of the pool (skimmer / connection point) by the pump, then it is sent through the 4-outlet valve, depending on the type, into the tank where the filtration of medium-sized particles (with sand) is carried out. Under pressure, the water is filtered through the sand. This removes most impurities before the water passes through the filters and back into the valve through the collector tube; Finally, the water returns into the pool. This set has 4 functions: winter, filtration, washing and rinsing. The set includes a TP25 filtration pump and reaches a flow rate of 3.4 m³/h.

• Filter Outer Diameter: 300mm (12")
• Flow rate (8 m water column): Max. 3.4 m³/h
• System pressure: Max. 3.5 bar
• Filter sand capacity: Max. 25 kg
• Multi-outlet valve:
• Valves: 4 outlets
• Suction and Return Connections: 1 1/2"
• Functions: Winter, Filtration, Washing & Rinsing
• Filter pump included: TP 25
• Pump Power:0.25 HP / 0.18 kW
• Accessories included:
• 1 filter + filter pump holder
• 1 mounting kit (mounting accessories)
• 1 x Connection Hose
• 1 pressure gauge
• 2 hose connections (32 mm)
• 2 hose connections (38 mm)
• 2 hose connections (50 mm)
