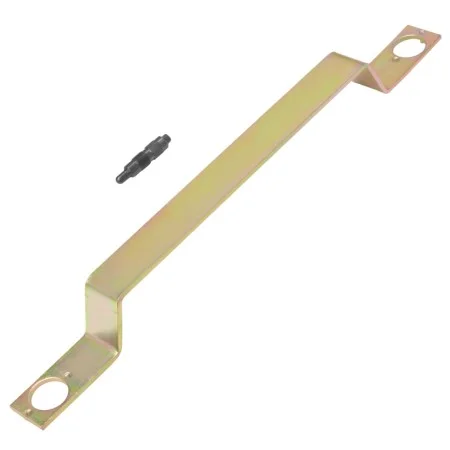

Camshaft Alignment Tool for VW VAG Audi V6

This camshaft alignment tool is ideal for holding and securing both camshafts at top dead center (TDC) when replacing the timing belt. It is suitable for 2.4L, 2.7L and 2.8L Bi-Turbo engines with 5 valves per cylinder in vehicles such as Audi A4, A6, A8, S4 and VW Passat. The included locking pin is used to lock the crankshaft in the TDC position while changing the timing belt or removing the crankshaft bolt.

• Material: Carbon steel
• Total length: 68 cm
• Pin length: 8 cm
• A locking pin is included
• Suitable car models (for example):
• Audi A4 2.4 and 2.8 (1997-2002)
• Audi A6 2.4 and 2.8 (1997-2002)
• Audi A8 2.8 (1997-2002)
• Audi S4 2.7 Biturbo (1997-2001)
• VW Passat 2.4 (1996-2002), Passenger 2.8 (1996-2001)
• Engine codes:
• 2.4 V6 30V: AGA, AJG, ALF, ALW, AML, AMM, APC, APS, APZ, ARJ, ARN, ASM, BDV
• 2.7 V6 30V: GTC, AJK, ARE, ASJ, AZA, AZB, AZR, BES
• 2.8 V6 30V: ACK, AEJ, AGE, AHA, ALG, AMX, APR, AQD, ATQ, ATX, BBG
