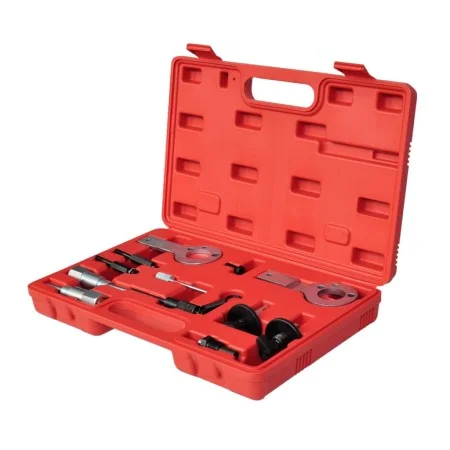

Engine distribution tool set

This synchronization tool kit is specifically designed for FIAT chain engines installed in the latest Vauxhall Opel Saab 1.3 and 1.9 CDTI models. The set includes all the tools to hold the crankshaft in place while fitting a new timing belt. Applications:
• Fiat chain and belt engines installed in Opel, Vauxhall, Saab, 1.3, 1.9 CDTi, Corsa, Astra, Combo, Meriva, Signum, Tigra, Vectra, Zafira
• Saab with belt drive engines: 1.9 Tdi installed in Saab 9-3 (2004 - 2009) and 9-5 (2003 - 2010)
Engine codes, CC, and models
Opel/Vauxhall Drive Chain
Agila 1.3: CDTi engine code Z13DT
Astra-H 1.3: CDTi engine code Z13 DTH
Combo-C 1.3: CDTi engine code Z13DT and Z13DTJ
Opel/Vauxhall Timing Belt:
Astra 1.9: CDTi engine code Z19DT and Z19DTH
Astra-H 1.9: CDTi engine code Z19DTH and Z19DTJ
Signum 1.9: CDTi engine code Z19DTH
Saab Timing Belt:
9-3 1.9: TiD engine code Z19DTH Z19DTR
9-3 1.9: TTiD engine code Z19DTH Z19DTR
9-5 1.9: TiD engine code Z19DTH Z19DTR
All tools are housed in a blow-molded carrying case for easy transport.

• Connector #1: M 6 x 1
• Connector #2: M 6 x 1
• Connector #3: M 16 x 1.5
• Connector #4: 115 mm
• Distribution pole: 75 mm
• Distribution adjuster: M 16 x 1.5
• Distribution connector: M 16 x 1
