Rear axle subframe tool set for Renault Laguna

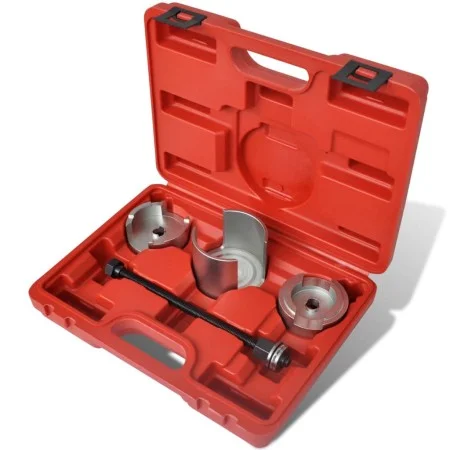

This rear axle bearing subframe tool set, made of quality carbon steel, is an essential tool set for the mechanic and is suitable for Renault and Laguna. It is designed to replace the subframe bushing and for the disassembly and assembly of the rear axle. Without causing damage, the fine thread and thrust bearing allow the pressure sleeve to be mounted quickly and easily. All tools are housed in a blow-molded case for easy storage and transportation. And the molded plastic storage case is well designed for long life in daily use. Complete set includes 1 pressure sleeve, 2 pressure pieces, 1 spindle and 1 molded plastic storage case.

• Material: High strength carbon steel
• Weight: 2.95kg
• For disassembly and assembly of the rear axle (ball joints)
• Fit for Renault and Laguna (2001 - 2007)
• Delivery includes:
• A pressure sleeve, 15.6mm inner diameter, 88.2mm outer diameter, 72.2mm high, with 2 opposite recesses, 43.3mm wide, 62.3mm high
• One pressure piece, 15.6mm bore diameter, 80mm outer diameter, 30.2mm height, with 2 opposite recesses, 42.2mm width, 19.9mm height
• One pressure piece, 15.6mm bore diameter, 77.6mm outer diameter, 21mm high, with 2 opposite recesses, 31.1mm wide, 9.7mm high
• One spindle, 247mm long, M12 x 1.75mm, with hex key screws and nut
• 1 x Red Plastic Storage Case: 33 x 25 x 9cm (Length x Width x Thickness)
