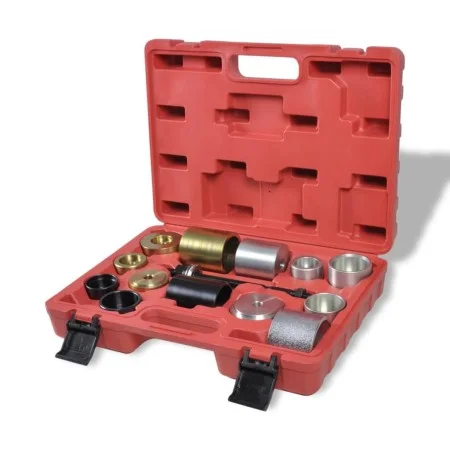

Silent bearing extractor kit suitable for BMW

It is a professional tool for commercial or hobby use. The kit is the ideal assistance for you to remove and install ball joints, axles and bearings for numerous BMW models from Series 1 to Series 8. This bearing puller tool set is designed for long life in daily use from the workshop and is classified as industrial grade. All tools are stored inside a blow-molded case for easy storage and transportation.

• Silent bearing puller set for BMW, 16 pieces
• A bar :
• Length: 225mm
• Thread dimensions: M12 x 1.5mm
• Hex wrench length: 8mm
• Used to drive the silent bearing
• A spindle nut:
• Thread dimensions: M12 x 1.5 mm
• Hex wrench length: 19mm
• One compression nut (with axial groove bearing):
• Internal thread dimensions: M12 x 1.5 mm
• Hex wrench length: 24mm
• A support sleeve (side slots):
• Outer diameter: 70mm
• Inner diameter: 57.5mm
• A support plate:
• Hole diameter: 12.5 mm
• Outer diameter: 70mm
• Trimmed with outer diameter: 57mm
• Height 12.2mm
• A removable pressure sleeve:
• Internal thread dimensions: M12 x 1.5 mm
• Outer diameter: 51mm
• Inner diameter 49.7mm
• Height: 35.2mm
• An intake pressure sleeve:
• Internal thread dimensions: M12 x 1.5 mm
• Outer diameter: 58mm
• Inner diameter: 47mm
• Height: 43.1mm
• A removable spacer sleeve:
• Hole diameter: 12.5mm
• Outer diameter: 55mm
• Inner diameter: 46mm
• Height: 72.3mm
• A pulling sleeve:
• Hole diameter: 12.5 mm
• Outer diameter: 45mm
• Inner diameter: 36mm
• Height: 30.1mm
• One intake spacer sleeve:
• Internal thread dimensions: M12 x 1.5 mm
• Outer diameter: 55.1mm
• Inner diameter: 46.5mm
• Height: 30.1mm
• With lateral phase
• A spacer sleeve:
• Hole diameter: 12.5 mm
• Outer diameter: 58mm
• Inner diameter: 47mm
• Height: 60.5cm
• A pressure element:
• Internal thread dimensions: M12 x 1.5 mm
• Outer diameter: 49.9mm
• Inner diameter: 32mm
• Height: 25.3mm
• A manga:
• Hole diameter: 12.5mm
• Outer diameter: 65mm
• Inner diameter: 50.3mm
• Height: 70.1mm
• A removable pressure piece:
• Internal thread dimensions: M12 x 1.5 mm
• Outer diameter: 48mm
• Inner diameter: 32mm
• Height: 20.1mm
• One piece intake pressure:
• Internal thread dimensions: M12 x 1.5 mm
• Outer diameter: 65mm
• Inner diameter: 32mm
• Height: 20.3mm
• A drawing plate:
• Hole diameter: 12.5 mm
• Outer diameter: 50.2mm
• Trimmed with outer diameter: 46mm
• Height: 12.1mm
• Included is a molded case, various impression pieces, stem and capsules.
• Allows the renewal of suspension rubber axles
• Suitable for BMW vehicles, 1 Series models, e.g. E81, E87; 3 Series E36, E46, E83, E90, E91, E92, E93; 5 Series models E60, E61, E63; 6 series models, E64, E38; 7 series models, E65, E66, E67; Series 8 models E31, E85 Z4, E86 and Mini Cooper model S R53
