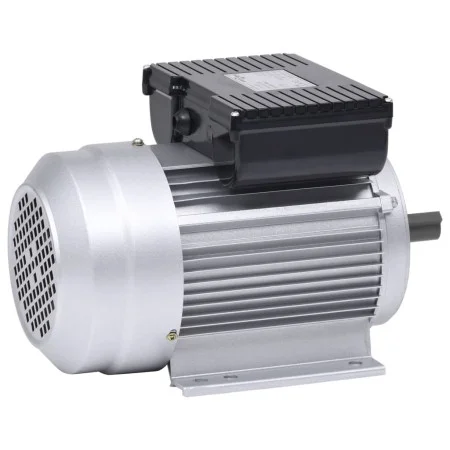

Single-phase aluminum electric motor 1.5kW/2HP 2 poles 2800 RPM

This single phase electric motor is commonly used in industrial and agricultural production, commercial and household appliances, and other fields, such as compressors, hoists/winches, fans, pulleys, pumps, etc. The asynchronous motor housing is made of durable, robust and reliable aluminum. The standard motor adopts IP55 protection rating, which can prevent the accumulation of harmful dust, completely prevent the motor from being touched, and wash with water without any damage. It is designed in high performance with a maximum speed of 2800 rpm and a shaft hardness of 19 mm. The large fan at one end cools the motor during operating hours, even in dusty or humid environments, reducing energy costs and operating temperature and increasing winding life.

• Silver colour
• Material: Aluminum
• Dimensions: 335 x 170 x 217 mm (length x width x height)
• Power: 1.5KW/2HP
• Speed: 2800 rpm
• Pole: 2P
• Frequency: 50Hz
• Shank diameter: 19 mm
• Protection class: IP 55
• Base dimensions: 140 x 100/120 mm (length x width)
• single phase motor
• Motor with integrated overload protection
• Aluminum casing
