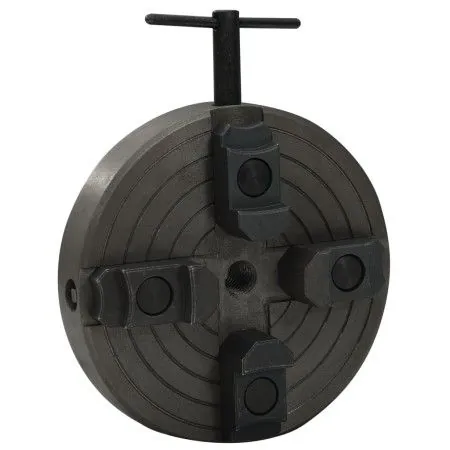

4-jaw wood chuck with M18 black steel connection 150x63mm

This wood chuck serves a wide range of tasks and increases the possibilities of creating more originales.Adem designs. In addition, it offers great clamping precision on a wide range of surfaces, such as solid fixed materials or hollow circle materials, or triangular materials. or hexagonal. This wood lathe chuck is made of steel, making it strong and duradero.Con With 4 jaws, the chuck is easy to use and fits a wide range of wood lathes.

• Color: Black
• Material: Steel
• Overall dimensions: 150 x 63 mm (diameter x height)
• Non-centering
• Number of jaws: 4
• Thread: M 18 with 3.5 pitch
• The smallest diameter can be clamped around 15x15mm
• Clamping range (internal jaw): 15 - 138 mm
• Clamping range (external jaw): 52 - 165 mm
• Thread depth: 39mm
• Total depth without jaws: 39 mm
• Total depth with jaws: 63 mm
• Maximum speed: 3000 R/min
• Net weight: 2.48kg
• Assembly Required: Yes
• Delivery contains:
• 1 x Mandrel
• 1 x Key
