Centering jaw chuck set for wood steel 3.75"

This 95mm (3.75 inch) wood chuck set is a mechanical device used to clamp a workpiece to a machine tool. Made of steel, this set is durable and resistente.Como As an accessory for machine tools, it uses the radial movement of movable jaws evenly distributed over the chuck to clamp and position the workpiece. This wood lathe chuck set includes 4 centering jaw chucks and interchangeable jaws for spindles, bowls and workpieces that are difficult to secure. Set fits one 1" x 8 TPI spindle.

• Color: Red and black
• Material: Steel
• Number of jaws: 4
• Centering machines
• Chuck diameter: 95mm (3.75 inches)
• Carrying case dimensions: 30.5 x 22.5 x 7.5 cm (L x W x H)
• Handle inner diameter range:
• #1 Stepped Jaws: 2.5mm - 35mm
• #2 Round Jaws: 32mm - 64mm
• #3 Round jaws: 76 - 108 mm
• #4 Pin Jaws: 9.5 - 45mm
• #5 Flat Jaws: 73mm
• Handle Outer Diameter Range:
• #1 Stepped jaws (bottom step): 38mm - 73mm
• #1 Stepped jaws (top step): 19mm - 51mm
• #2 Round Jaws: 45mm - 80mm
• #3 Round jaws: 90 mm - 124 mm
• #4 Pin Jaws: 25mm - 60mm
• #5 Flat jaws: 130 mm
• Indexed back plate: 24 and 36 positions
• Thread: 1" x 8 TPI
• Maximum speed: 3000 R/min
• Net weight: 4.5kg
• Can contain round and square material
• Assembly Required: Yes

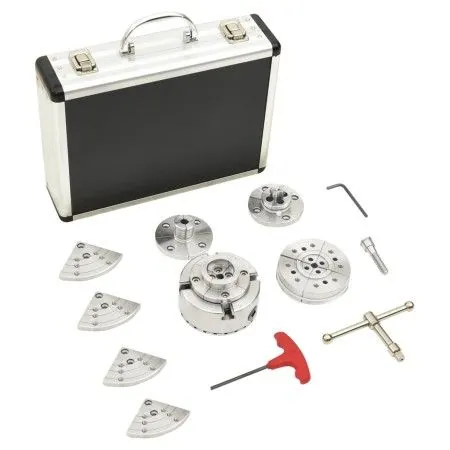

• Delivery contains:
• 1 x Chuck Body
• 1 x Carrying case
• 1 x T-Handle Hex Wrench, 4mm
• 1 x Lathe Chuck Key, 8mm
• 1 x Woodworm Screw
• 1 x Hex wrench
• 4 x #1 Step Jaws
• 4 x #2 round jaws
• 4 x #3 Round Jaws
• 4 x #4 Pin Jaws
• 8 x M5-8x8 flat head screws
• 8 x Grip bolts, 13mm, M6-1x6
• 8 x Grip bolts, 18mm, M6-1x6
