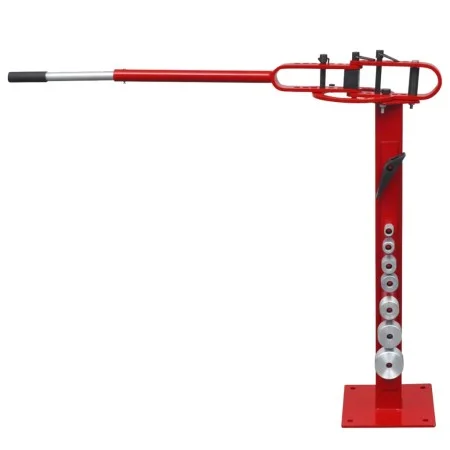

Manual Steel Pipe Bending Machine

This versatile tube bending machine can be used for precise bending of round tubes, square bars, as well as steel strapping, making it ideal for daily use in the workshop. This bender has a solid construction. The machine can bend parts up to 6mm thick and 50mm wide. Supplied with 7 different shaping rollers, the bender can make unlimited designs such as U-shaped bolts, clamps, handles and so on. The extendable lever will fully extend the pressure applied to the metal.Gracias Thanks to its four pre-drilled holes, the bender can be easily bolted to the ground. It is compact in size and light in weight, convenient for mobile use.

• Total height: 100cm
• Base size: 24 x 24 cm (width x length)
• Maximum bending angle: 200 degrees
• Adjustable bending lever: 75-96cm
• Shaping rollers: diameters of 25, 30, 40, 45, 50, 65, 75 mm
• Suitable for:
• Steel strip - bending radius: 50 x 6 mm (width x thickness)
• Steel strip - bending curvature: 50 x 4 mm (width x thickness)
• Round steel: diameter 12mm
• Square steel: 16 x 6 cm (width x thickness)
